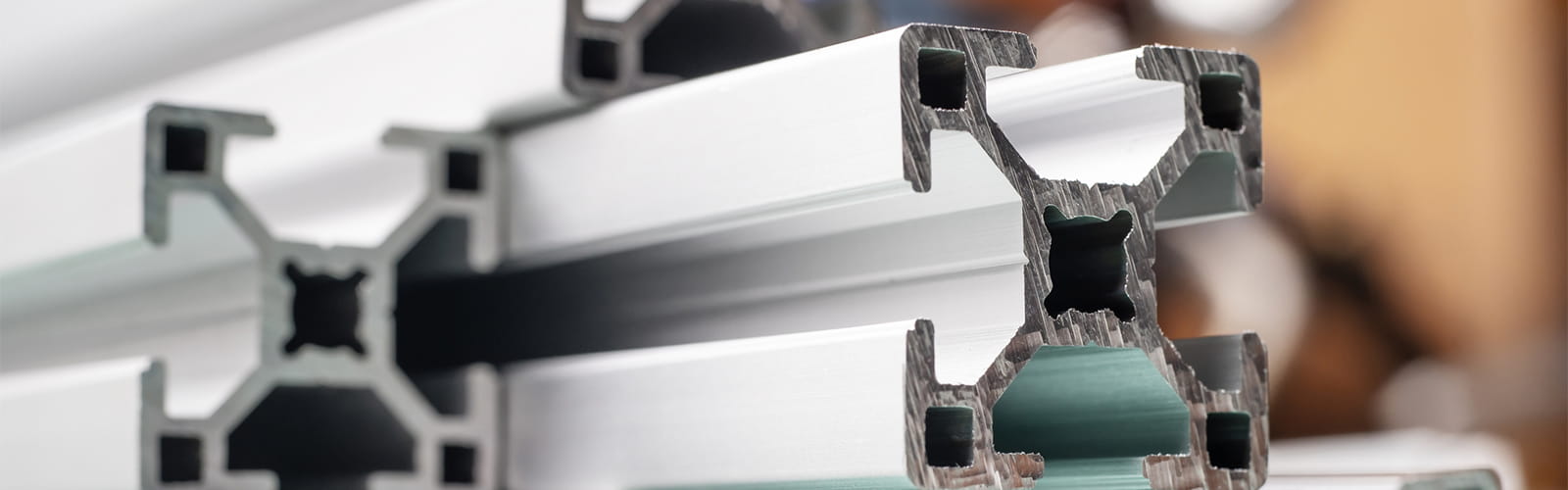

T-slot aluminium profiles

If you have ever looked at a modular workbench, a machine guard or a CNC enclosure and wondered how it all bolts together so neatly, the answer is very likely T-slot aluminium. This is an extruded profile with a channel running along each face, allowing fittings to slide in and lock at any point rather than needing holes drilled at fixed intervals.

It has become a favourite for anyone planning a workshop build, because it lets you adjust, extend or rebuild a frame without starting from scratch. So, what exactly is T-slot aluminium, and where does it earn its keep?

What Is T-Slot Aluminium?

T-slot aluminium is a type of aluminium extrusion manufactured with a T-shaped channel running along one or more sides of the profile. Rather than fixing components with drilled holes, you slide a fastener into the slot and lock it wherever the design calls for it, making the whole system reconfigurable as a project develops.

Most T-slot profiles are made from 6063 aluminium, a grade chosen for its good strength-to-weight ratio and the way it extrudes into fine, consistent channels without losing accuracy along the length. That combination of adjustability and a dependable alloy is exactly why the system has spread from industrial machine building into hobbyist workshops, becoming a genuinely versatile building block for anyone designing a frame from scratch.

T-Slot Aluminium vs Standard Aluminium Profiles

It is worth being clear that T-slot aluminium is not simply another name for every aluminium profile on the market. A standard structural aluminium section, such as a tee section or an angle, is chosen mainly for its shape and load-bearing properties, with fixings usually added afterwards through drilled or welded joints once the frame layout has been finalised.

T-slot profiles share that structural role, but they are built specifically around their sliding channel, so fittings and brackets can be repositioned at any point along the length without any further machining. If your project simply needs a fixed frame member that will not be altered later, a standard aluminium profile such as our tee sections may do the job perfectly well and at a lower cost.

If you need to adjust or rebuild the layout as the project develops, that is where T-slot earns its place instead.

The Key Components of a T-Slot Framing System

A T-slot aluminium frame is only as good as the fittings that hold it together, and most systems rely on a small handful of standard parts.

  • T-Nuts: These sit inside the channel and provide a thread for a bolt to tighten against, without needing to drill into the profile itself
  • Connectors: Brackets and joining plates that link two lengths of profile at a corner, a T-junction or in-line, keeping the frame square as it grows
  • Fasteners: Bolts and screws that pass through a connector and tighten into a T-nut, clamping the joint firmly in place
  • Panels and Accessories: Covers, mounts and guards that clip or bolt straight into the same slot used for structural fittings

Together, these parts make up a profile system that can be built, taken apart and reconfigured as a project changes, without a single new hole being drilled.

T-Slot Extrusion vs V-Slot: Which Should You Choose?

Alongside T-slot extrusion, you will often come across V-slot, a system that uses a V-shaped groove paired with wheels that run directly in the channel rather than a separate linear rail. V-slot is popular for machines that need smooth, low-friction linear motion, such as router gantries and 3D printer carriages, because the wheels ride the groove and roll freely along it.

T-slot, by contrast, is built around fixed T-nuts rather than rolling wheels, which makes it better suited to static structural frames, enclosures and machine guards where rigidity matters more than sliding motion. Well-known names have built their reputation on T-slot systems for exactly this reason, supplying profiles used across industrial and hobbyist builds alike. If your project needs a moving linear axis, look at V-slot. If it needs a strong, adjustable frame that stays put once assembled, T-slot aluminium is the better fit.

Where T-Slot Aluminium Is Used

So, what is T-slot aluminium used for in practice? The short answer is anywhere a frame needs to be strong, adjustable and quick to build:

  • Modular Framing: Workshop benches, shelving and enclosures that can be resized or extended as needs change
  • Machine Frames: The structural skeleton around CNC routers, 3D printers and other equipment, where panels and guards bolt straight into the same profile
  • CNC Frames: Gantries and enclosures built specifically around a CNC machine, using T-slot extrusion to mount rails, covers and control panels
  • General Workshop Build Projects: Jigs, fixtures and workstations that benefit from being taken apart and rebuilt as a job demands

Because the fittings slide rather than fix permanently, a T-slot structure can grow or change shape without cutting a single new hole, which is exactly why it has become the go-to choice for anyone who expects their build to evolve.

Choosing the Right Aluminium Profile for Your Project

Once you know how you intend to use the frame, choosing the right aluminium profile becomes a much simpler decision. If you are building a genuine T-slot aluminium system, whether that is modular framing, a machine frame or a CNC frame, you will need a dedicated profile system designed for that channel and its matching T-nuts and connectors, sourced from a specialist T-slot supplier.

If your project instead calls for structural aluminium in a fixed shape rather than a sliding channel, our aluminium tee sections and other stock profiles can be cut to your exact length, with a general tolerance of plus or minus 2mm and no minimum order charge. At Click Metal, we supply the aluminium profile itself cut precisely and accurately to size, so your framing project starts with parts that fit first time, whichever route your design ultimately takes.
