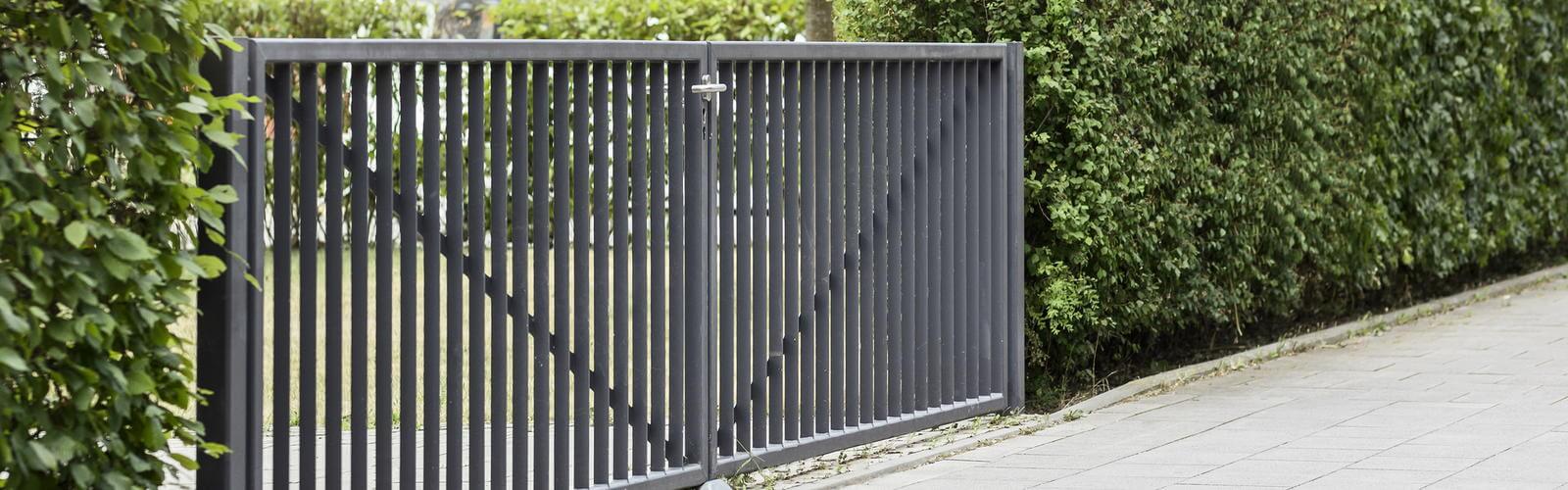

How to Build a Garden Gate from Mild Steel Flat Bar and Angle

Building your own steel garden gate is one of the most satisfying DIY metalwork projects you can take on, and with the right materials and a clear plan, it's well within reach for a confident home fabricator. This guide walks you through the whole process of how to build a steel garden gate, from working out your design to hanging the finished piece, so you end up with something sturdy, accurate and built to your own measurements.

Before you pick up a single length of steel, though, it pays to plan the layout properly, since every measurement from here on depends on getting that first step right.

Planning Your Garden Gate Design

Good gate design starts with the space it needs to fill, so measure the opening carefully, including any slope in the ground and the swing clearance the gate will need once it's hung. A simple flat bar gate, built from horizontal and vertical lengths of flat bar with a diagonal brace, is one of the most straightforward styles to work out for anyone learning how to build a steel garden gate, and it suits most garden and driveway settings without looking overly industrial.

Think about height and style too. A taller gate offers more privacy and security, while a lower, more open design suits a cottage-style garden. Whatever you choose, leave room in your plan for gate hanging. Decide early whether you're fitting to timber posts, brick piers or metal posts, since this affects the hinge type and post preparation that you'll need before assembly begins.

Calculating the Materials You'll Need

Once your design is settled, it's time to work out exactly what you need. Most gates like this are built from a mix of materials, each doing a specific job, with the frame carrying the load, while lighter sections fill the gaps and add detail. For a sturdy mild steel gate, a typical materials list looks something like this:

• Mild Steel Flat Bar: For the main frame, uprights and diagonal brace
• Mild Steel Box Section: For the perimeter frame if you want extra rigidity and a boxier profile
• Mild Steel Angle: For corner brackets, hinge plates or a decorative border
• Fixings and Hinges: Sized to suit the post material you settled on earlier

Measure your opening again before ordering, add a small allowance for trimming, and order everything cut to length by our team here at Click Metal, so there's minimal cutting left to do once it arrives.

Worked Example: Building Your Cutting List

To make this concrete, here's a worked example for a single leaf gate measuring 900mm wide by 1000mm high, which is a common size for a side access gate. Once you've settled on your overall design, translating it into a cutting list is the next practical step in how to build a steel garden gate that actually fits:

• Two Uprights: 40 x 40mm mild steel box section, cut to 1000mm
• Two Horizontals: 40 x 40mm, cut to 820mm (allowing for the upright widths)
• One Diagonal Brace: 40 x 5mm flat bar, cut to fit corner to corner
• Corner Brackets: 40 x 40 x 5mm steel angle, cut into four 100mm lengths

Always double check your finished sizes against the opening before cutting, and remember our general tolerance is plus or minus 2mm, so your finished gate will sit accurately within the frame.

Welding vs Bolting: Choosing How to Join Your Gate

With your cutting list sorted, the next decision is how you'll join everything together: welding vs bolting. Welding gates gives a rigid, permanent frame with no joints to loosen over time, and it's the method most trade fabricators prefer for a clean finish. It does mean having access to a welder and a little practice with mild steel first, so if you're wondering how to build a steel garden gate and new to this approach, run a few test welds on offcuts before tackling the real pieces.

Bolting is the more accessible route for DIY metalwork beginners. Using angle brackets, coach bolts and locknuts, you can build a strong mild steel gate without any welding equipment, and everything stays adjustable if you need to true up the frame later. Either method produces a gate that will last for years if it's assembled squarely and finished properly.

Protecting Your Gate with the Right Surface Treatment

Before your gate goes outside permanently, it needs a surface treatment steel finish that will stand up to the British weather. Mild steel will rust quickly if left bare, so the first job is removing any weld spatter, rust or scale with a wire brush or angle grinder, then wiping down with a degreasing solvent to leave a clean surface for whatever coating you choose.

A hot dip galvanised finish offers the longest protection and suits gates that will see heavy use, though it does need to be arranged with a specialist before assembly is finished. For most home projects, a good quality metal primer followed by two coats of exterior gloss or a hard-wearing garden paint will protect your flat bar gate for years, provided you keep on top of any chips or scratches. Whichever route you choose, let each coat cure fully before hanging.

Hanging Your Gate and Getting the Right Materials from Click Metal

With the frame built and finished, gate hanging is the final step. Fit heavy-duty hinges to your posts first, checking they're level and firmly fixed, then offer the gate up and mark the hinge positions before drilling or welding them in place. Leave a small gap, around 10mm, at the bottom and sides so the gate swings freely without dragging and fit a suitable latch or bolt once you're happy with the fit.

Whether you've gone with welding gates from the start or bolted your frame together, the accuracy of your original cut list makes this last stage far easier. That's where we come in, as every structural section and fixing we supply is cut and finished to your exact gate design, with a general tolerance of plus or minus 2mm. That way, your steel garden gate goes together the way you planned it, first time, with minimal hassle.

Start Your Gate Build with Precisely Cut Steel

And that's everything you need to know about how to build a steel garden gate, from planning the design and working out your cutting list through to joining, surface treatment steel finishing and hanging. At Click Metal, we supply mild steel flat bar and angle cut to your exact measurements, with no minimum order and most orders despatched within 48 hours.

If you can't find the size you need, get in touch through our contact form or call us on 01794 526090, and we'll help you get your gate built right.
